VTech Laser 200

The Laser 310 is completely compatibel with the Laser 210 or the VG200. The 310 was released in 1985 in Europa and China. It was sold as the Dick Smith VZ300 in Australia and New Zealand.

The 310 featured the same 8-bit architecture, the Z80 ran slightly slower at 3.54MHz due to the use of a television color burst crystal as the clock signal for the CPU. The memory had been increased to 16kByte and with the 16kByte expansion RAM a total of 32kByte of RAM was available to the programmer.

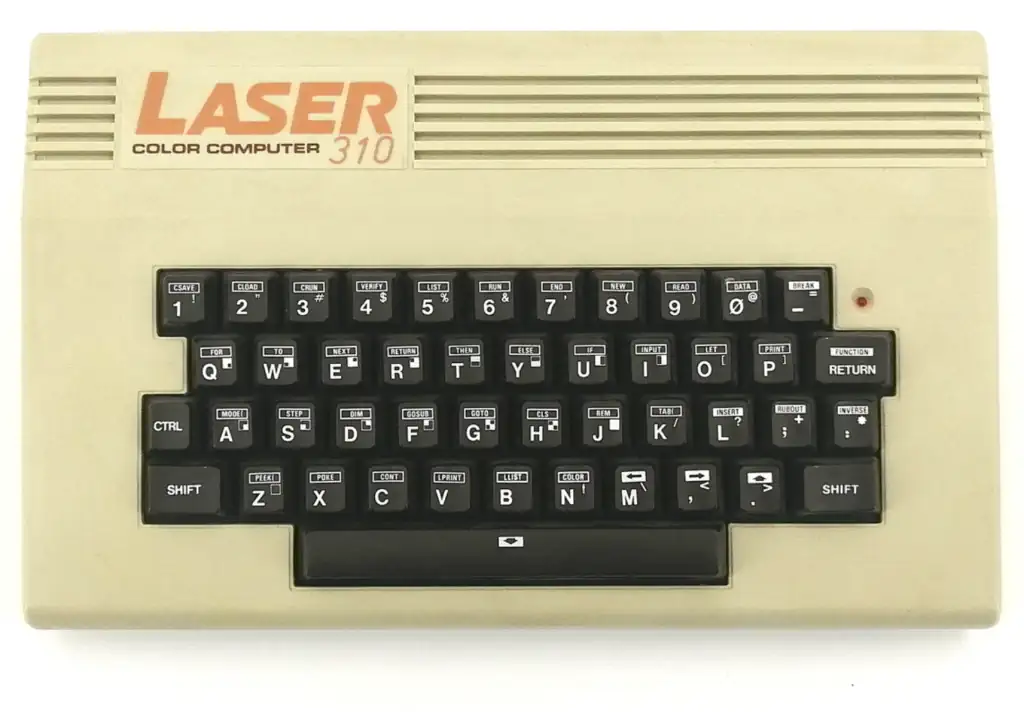

The machine's case was also redesigned. It now had a full-stroke keyboard instead of the chickled keyboard that the Laser 210 and it's other incarnations used.

There were three different models of the Laser 310/VG300 keyboard:

Brown Keys with no under-key labels (1985)
Brown keys with under-key labels (1986)
Light gray or cream colored keys with under-key labels (1987)

The case of the computer was also made of less brittle plastic, making the computer a bit more robust.

There is a very rare version of the VZ300 with 64kByte of RAM built onto the motherboard. This version uses 8 HM4864P-2 8K Static Ram chips instead of the usual 8x 2K RAM chips.

Laser Video Capabilities

For its video capabilities, The VZ200 uses the Motorola 6847 Video Processor, which has a maximum resolution of 256x192 pixels made up from 8x8 pixel character blocks. With the installed 2kByte of VRAM, the bitmapped mode was unavailable, and the text mode could provide a semi-resolution of only 256x128 pixels. The VZ200 has 256 predefined character blocks and a total of nine colors, consisting of eight colors plus black. The character blocks are stored in ROM and cannot be redefined.

Text MODE 0

In mode 0, the background color can be dark green or orange, with black text. The first 128-character blocks are 64 alpha-numeric characters and their inverse. Mode 0 is the only mode in which black is available. The second 128-character blocks consist of 2x2 pixel blocks in various combinations for every of the 8 colors available. This made crude semi-graphics possible.

Text MODE 1

In mode 1, two color schemes are used with each background.

Color Scheme 1 background: light green, foreground: light green, yellow, blue or red.
Color Scheme 2 background: white, foreground: white, cyan, magenta or orange.

Text can use either color scheme for foreground with each background color. This mode uses all of the 2kByte VRAM, whereas Mode 0 only uses 512 bytes. However, the color black is not available in Mode 1.

Graphics Mode

The graphics mode has 128Ã—64 semi-pixels. For each character block, the background color can be white or light green and the foreground color can be any in the chosen color scheme, only one color set can be used at a time, so only four colors can be displayed simultanously. Some clever users figured out that with precise video timing using assembly code, it is possible to split the display to show all eight colors on the screen, you can find these techniques shown in the VZ200 Five Finger Punch demo '2018AD' and Bushy555's demo '8 colors'.

Video - Motorola MC6847 VDG

The MC6847 is a video display generator (VDG) first introduced by Motorola and used in the following machines (this is not a full list):

CPU - The Zilog Z80

The Z80 quickly became popular in the personal computer market, with many early personal computers, such as the TRS-80 and Sinclair ZX80, using the Z80 as their central processing unit (CPU). It was also widely used in home computers, such as the MSX range, SORD, and the Amstrad CPC, as well as in many arcade games. Additionally, it was also used in other applications such as industrial control systems, and embedded systems. The Z80 was widely used until the mid-1980s, when it was gradually replaced by newer microprocessors such as the Intel 80286 and the Motorola 68000.

The Z80 microprocessor was developed by Zilog, a company founded by Federico Faggin in 1974. The Z80 was released in July 1976, as a successor to the Intel 8080. It was designed to be fully compatible with the 8080, but also included new features such as an improved instruction set, more powerful interrupts, and a more sophisticated memory management system.

Originally the Z80 was intended for use in embedded systems, just as the 8080 CPU. But the combination of compatibility, superior performance to other CPUs of the era, and the affordability led to a widespread use in arcade video game systems, and later in home computers such as the Osborne 1, TRS-80, ColecoVision, ZX Spectrum, MSX, Sega's Master System and many more. The Z-80 ran the original Pac-Man arcade cabinet. The Z-80 was used even in the Game Gear (1990s), and the TI-81 and succeeding graphic calculators.

The Z-80 remained in production until June of 2024, 48 years after its original release. Zilog replaced the processor with its successor the eZ80, an 8-bit microprocessor that features expanded memory addressing up to 16 megabytes, and running up to 50MHz, comparable to a Z80 clocked at 150MHz.
