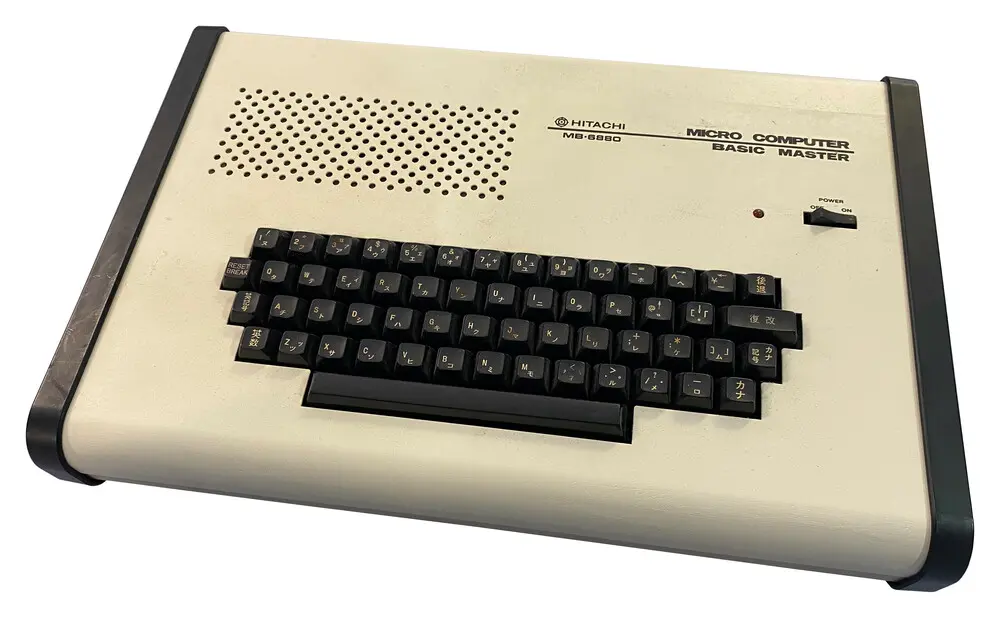

Hitachi MB-6880 BASIC Master Level 1

The Hitachi MB-6880 was announced in September of 1978 by Hitachi. It was an 8-bit computer that would later be called the "BASIC Master Level 1".

The computer could be connected to a special-purpose RGB monitor, but also to a television set. It could be programmed in BASIC, but was also capable of playing tunes that could be programmed with tones given by Japanese Kana characters. Many consider this computer to be the first example of the "personal computer".

CPU - The Motorola 6800

The 6800 is an 8-bit microprocessor designed by Motorola in 1974. The processor was developed as part of the M6800 Microcomputer System that was announced in the same year.

The 6800 has a 16-bit address bus that can directly access 64KB of memory and an 8-bit bi-directional databus. The CPU has a total of 72 instructions using seven different addressing modes, resulting in 197 opcodes. The original 6800 used a clock frequency of up to 1 MHz, while later versions increased this limit to 2MHz.

The 6800 was used in various computer systems and point of sale terminals. It can also be found in older arcade systems and pinball machines. It was succeeded by the MC6802 which was released in 1977. This CPU had 128 bytes of RAM on board and an internal clock oscillator. The later produced Motorola 6809 was stil backwards compatible with the 6800.

Technical Details
Released
1978
Country
Japan
Brand
Hitachi
Type
Hitachi Computers Basic Master
Name
MB 6880
CPU Class
6800/6809
CPU
Motorola 6800 @ 0.8MHz
Memory
RAM: 4kB
ROM: 18kB
Sound Chip
none
Sound
3 octaves
Display Chip
none
Display
64x48 text
256x192 graphics
Best Color
8 colors using optional color adapter
Graphics
256x192
Sprites
no sprites
System OS
MB-6880 BASIC
Storage
External Tape
