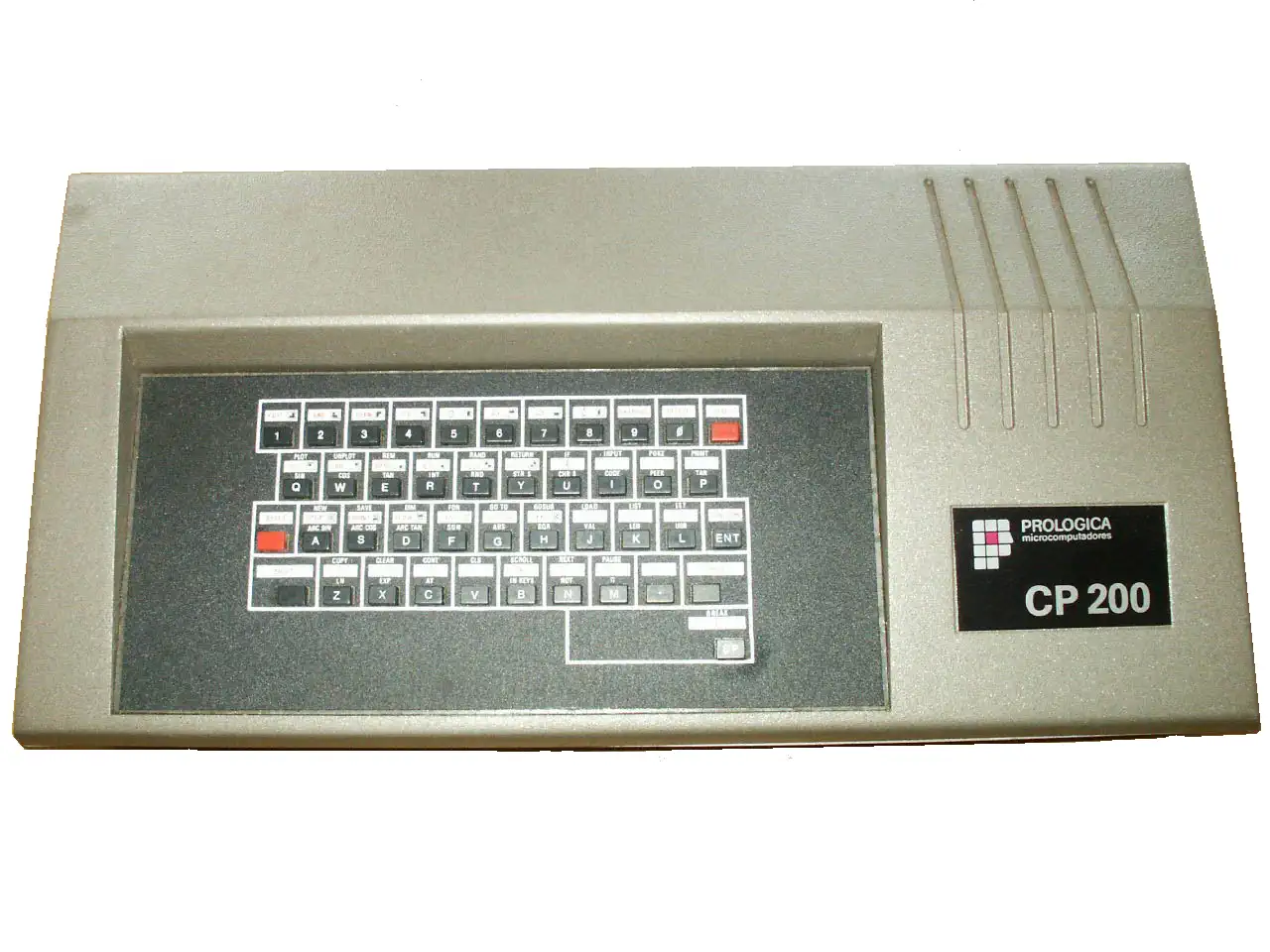

Prologica CP-200 (ZX81 Clone)

The CP-200 was a Brazilian clone of the Sinclair ZX81, produced in 1982. It was hardware and software compatible with the ZX81, but it was not an exact copy of the machine. There are two models of the CP-200, with the only difference that the first model had the Prologica logo in relief, and the cabinet was slightly smaller.

Later Prologica produced another version of the same machine, the CP-200s. The cabinet was redesigned and the computer had a video monitor output port added to it, and the power supply unit was now external.

CPU - The Zilog Z80

The Z80 quickly became popular in the personal computer market, with many early personal computers, such as the TRS-80 and Sinclair ZX80, using the Z80 as their central processing unit (CPU). It was also widely used in home computers, such as the MSX range, SORD, and the Amstrad CPC, as well as in many arcade games. Additionally, it was also used in other applications such as industrial control systems, and embedded systems. The Z80 was widely used until the mid-1980s, when it was gradually replaced by newer microprocessors such as the Intel 80286 and the Motorola 68000.

The Z80 microprocessor was developed by Zilog, a company founded by Federico Faggin in 1974. The Z80 was released in July 1976, as a successor to the Intel 8080. It was designed to be fully compatible with the 8080, but also included new features such as an improved instruction set, more powerful interrupts, and a more sophisticated memory management system.

Originally the Z80 was intended for use in embedded systems, just as the 8080 CPU. But the combination of compatibility, superior performance to other CPUs of the era, and the affordability led to a widespread use in arcade video game systems, and later in home computers such as the Osborne 1, TRS-80, ColecoVision, ZX Spectrum, MSX, Sega's Master System and many more. The Z-80 ran the original Pac-Man arcade cabinet. The Z-80 was used even in the Game Gear (1990s), and the TI-81 and succeeding graphic calculators.

The Z-80 remained in production until June of 2024, 48 years after its original release. Zilog replaced the processor with its successor the eZ80, an 8-bit microprocessor that features expanded memory addressing up to 16 megabytes, and running up to 50MHz, comparable to a Z80 clocked at 150MHz.

Technical Details
Released 1982
Country Brasil
Brand Prologica
Type Prologica Clones
Name Prologica CP 200
Clone Of
CPU Class Z80
CPU Zilog Z80A @4MHz
Memory RAM: 16kB
ROM: 8kB
Sound Chip none
Sound Beeper
Display Chip none
Display 32x24 text, character mapped graphics
Best Color 8 colors
Graphics Pseudo Graphics
Sprites none
System OS Sinclair BASIC
Storage External Tape
