Thomson TO8  (1986)
◄ Back to Computers

Thomson MO6

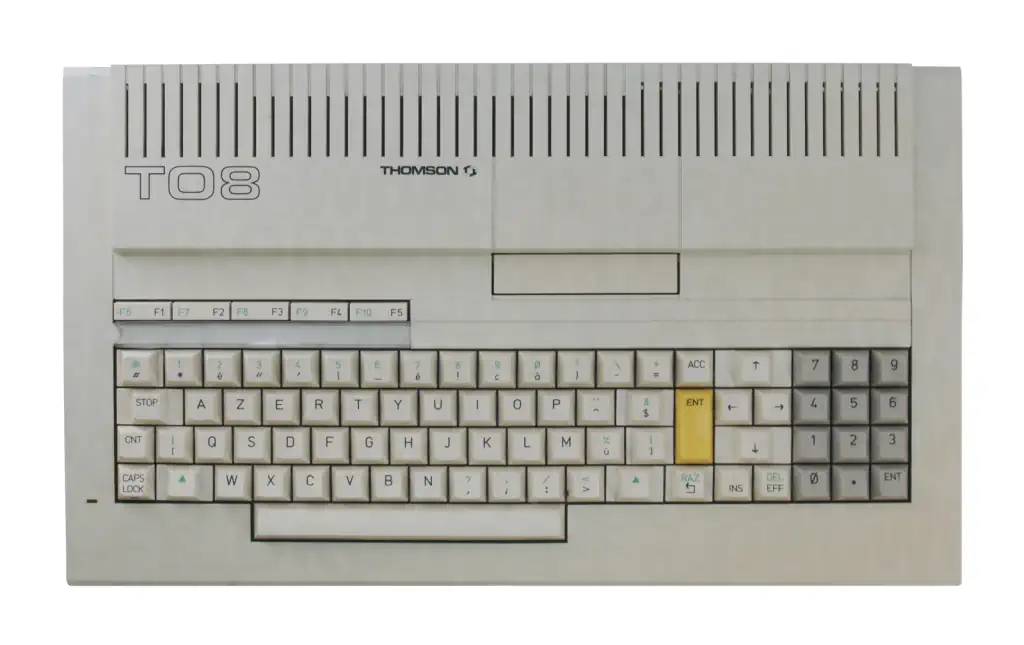

The Thomson TO8 was a homecomputer built by Thomson SA in 1986. It is compatible with its predecessor the Thomson TO7/70 but has improvements like a larger memory of 256kByte and an improved graphics chip, the Thomson EF9369 which allowed for more color (16 out of a palette of 4096) and better graphics without the limitation of only 2 colors per 8 pixels.

This model was quite popular in France and more than 120 games have been produced for the system. Thomson later came with a varioant, the Thomson TO8D which included a built-in 3.5" floppy disk drive.

CPU - The Motorola 6809

The Motorola 6809 is an 8-bit microprocessor with some 16-bit features. It was designed by Motorola's Terry Ritter and Joel Boney and introduced in 1978. Although source compatible with the earlier Motorola 6800, the 6809 offered significant improvements over it and 8-bit contemporaries like the MOS Technology 6502, including a hardware multiplication instruction, 16-bit arithmetic, system and user stack registers allowing re-entrant code, improved interrupts, position-independent code and an orthogonal instruction set architecture with a comprehensive set of addressing modes.

Technical Details
Released
1986
Country
France
Brand
Thomson SA
Type
Thomson TO/MO Series
Name
Thomson TO8
CPU Class
6800/6809
CPU
Motorola 6809E @ 1MHz
Memory
RAM: 256kB
RAM max: 512kB
ROM: 80kB
Sound Chip
none
Sound
1 bit D/A comverter
Display Chip
Thomson EF9369
Display
640x200
320x200
max 16 out of 4096 colors
Best Text
40x25
Best Color
16 colors from 4096
Graphics
640x200
System OS
BASIC 512
Disk Basic
Storage
Cassette Tape
Original Price
2990 FF
