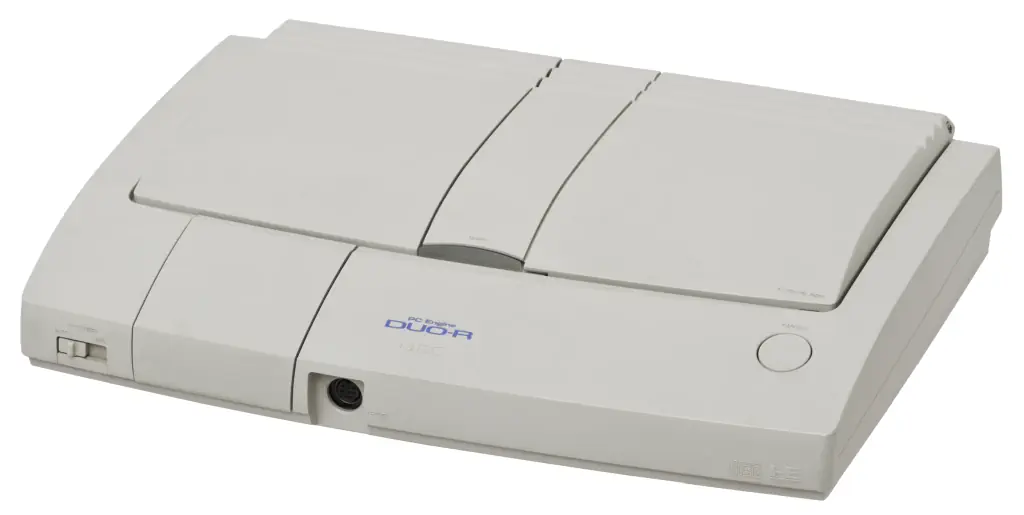

PC Engine Duo-R

The PC Engine Duo-R was released by NEC Home Electronics in 1993 for the Japanese Market. It was a more slick white design of the PC Engine Duo to reduce manufacturing cost, and ultimately sales price to boost sales.

The PC Engine Duo-R omits the 3.5mm headphone connector, and the locking switch for the lid of the Duo's top loading CD-ROM drive. The unit has an off-white color and the chasis is shaped differently to reduce manufacturing cost.

The PC Engine Duo-R is the 2nd release of the PC Engine Duo in a series of 4 releases.

Technical Details✨
Released 1993
Country United States
Brand NEC
Type TurboGrafx PC-Engine
Name PC Engine Duo-R
CPU Class 650x
CPU HuC6280 @7.16 MHz
Memory RAM: 8 kB
VRAM: 64 kB
Sound Chip HU6280, PSG
Sound PSG
5-10 bit stereo PCM
Display Chip HuC6270 VDC
HuC6260 VCE
Display 256x239 in 482 out of 512 colors
565x242 in 482 out of 512 colors
Best Color 482 colors out of 512
Graphics 565x242
Storage HuCard ROM cartridges
Related Systems 💾
TurboGrafx PC-Engine

TurboGrafx  16 (1987)

PC Engine  CoreGrafx (1989)

PC Engine  Shuttle (1989)

Super  Grafx (1989)

TurboGrafx  Express (1990)

Turbo  Duo (1992)
⭐
PC Engine  Duo-R (1993)

PC  FX (1994)
