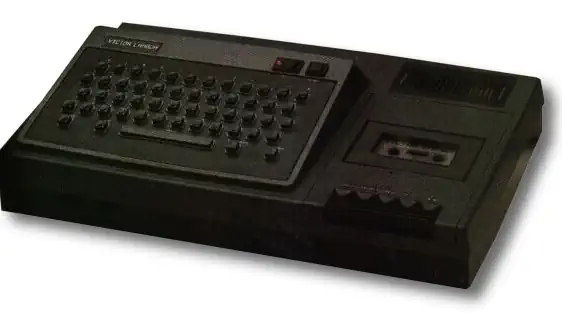

The Victor Lambda (rebranded Interact Family Computer)

The Victor Lambda was a rebranded Interact Home Computer(also called The Interact Family Computer 2) microcomputer. Introduced in 1980, it had a chiclet keyboard and built-in cassette recorder for data storage.

The design of the Interact family computer was sold to the French Company Lambda Systems, and the computer got rebranded as the Victor Lambda for the French Market.

Sound - The SN76477

The SN76477 is a sound chip produced by Texas instruments in 1978. This chip was used as the sound generator in arcade games, toys and home computers.

The SN76477 generates complex audio signal waveforms by combining the outputs of a low frequency oscillator, variable frequency (voltage controlled) oscillator (VCO) and noise source, modulating the resulting composite signal with a selected envelope and, finally, adjusting the signal's attack and decay periods. At each stage, the process can be controlled at the programming inputs of the signal modification and generation circuits, using control voltages, logic levels, or different resistor and capacitor values.

CPU - The Zilog Z80

The Z80 quickly became popular in the personal computer market, with many early personal computers, such as the TRS-80 and Sinclair ZX80, using the Z80 as their central processing unit (CPU). It was also widely used in home computers, such as the MSX range, SORD, and the Amstrad CPC, as well as in many arcade games. Additionally, it was also used in other applications such as industrial control systems, and embedded systems. The Z80 was widely used until the mid-1980s, when it was gradually replaced by newer microprocessors such as the Intel 80286 and the Motorola 68000.

The Z80 microprocessor was developed by Zilog, a company founded by Federico Faggin in 1974. The Z80 was released in July 1976, as a successor to the Intel 8080. It was designed to be fully compatible with the 8080, but also included new features such as an improved instruction set, more powerful interrupts, and a more sophisticated memory management system.

Originally the Z80 was intended for use in embedded systems, just as the 8080 CPU. But the combination of compatibility, superior performance to other CPUs of the era, and the affordability led to a widespread use in arcade video game systems, and later in home computers such as the Osborne 1, TRS-80, ColecoVision, ZX Spectrum, MSX, Sega's Master System and many more. The Z-80 ran the original Pac-Man arcade cabinet. The Z-80 was used even in the Game Gear (1990s), and the TI-81 and succeeding graphic calculators.

The Z-80 remained in production until June of 2024, 48 years after its original release. Zilog replaced the processor with its successor the eZ80, an 8-bit microprocessor that features expanded memory addressing up to 16 megabytes, and running up to 50MHz, comparable to a Z80 clocked at 150MHz.

Technical Details
Released 1979
Country France
Brand Lambda Systems
Type Victor Hector
Name Victor Lambda
CPU Class Intel 8-bit
CPU Intel 8080 @2MHz
Memory RAM: 16kB
RAM max: 64kB
ROM: 2kB
Sound Chip TI SN76477 Sound Generator
Sound 1Voice, 4 Octaves sound
Display 17x12 text in 8 colors
112x78 in 4 from 8 colors
Best Text 17x12
Best Color 8 colors
Graphics 112x78
Sprites none
System OS BASIC
Storage 1500 Baud Internal Cassette drive
