The commodore PET line of personal computers was introduced in 1977. It uses the MOS 6502 CPU, runs commodore Basic in ROM, and has built in keyboard, monitor and in the early models a cassette recorder.

Commodore was the first company to license Microsoft's 6502 BASIC. The agreement with Microsoft stated that Commodore would only pay for the license upon shipment of the PET. This almost bankrupted Microsoft. Microsoft was saved by Apple's decision to also license Microsoft's BASIC for their Apple II computers.

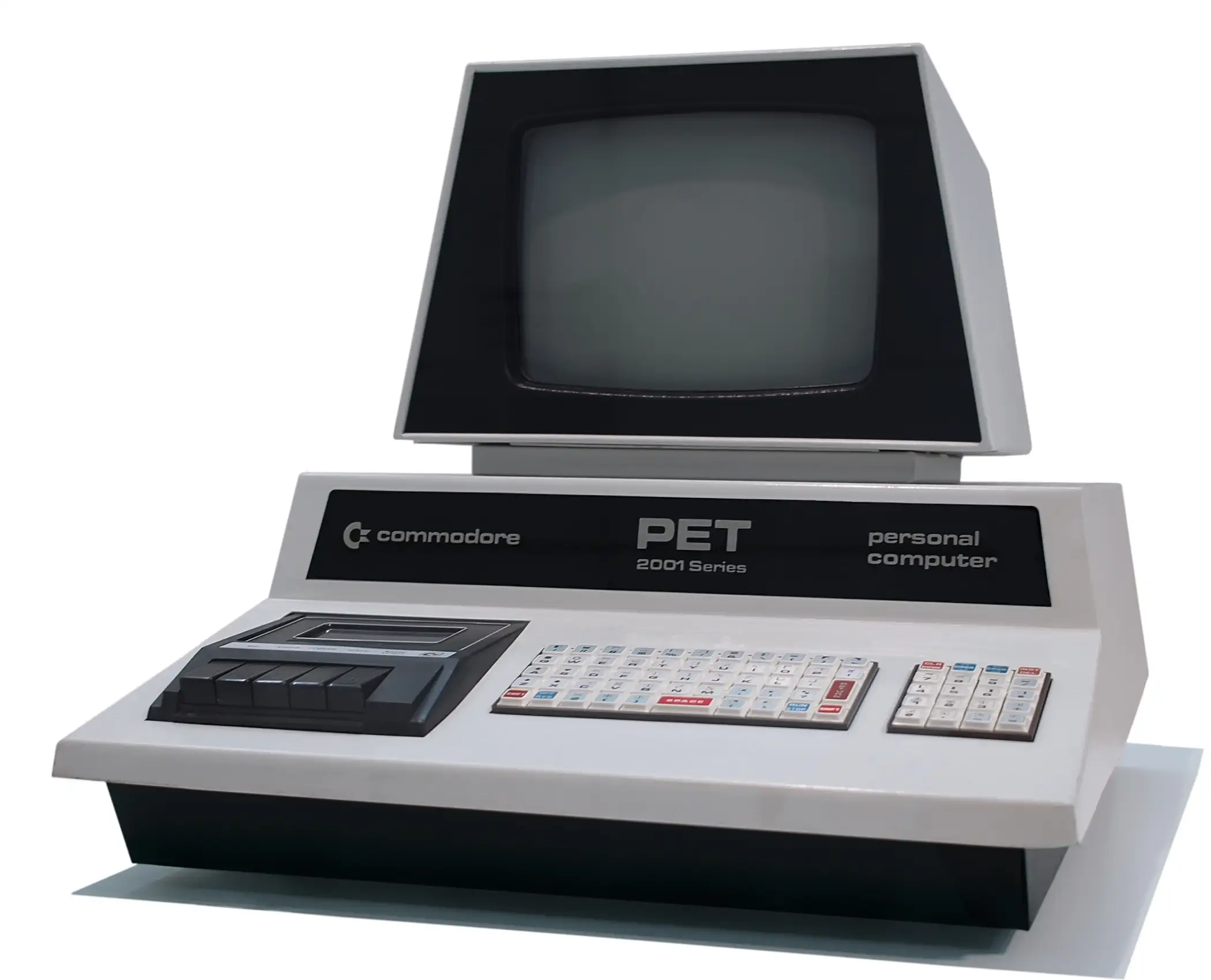

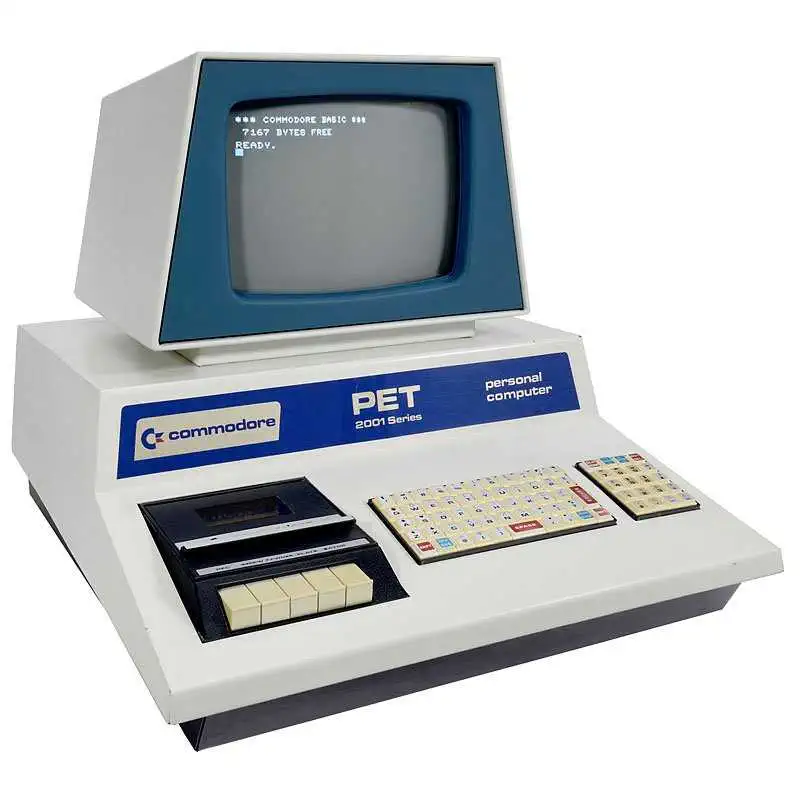

The Commodore PET 2001 was an predecessor of the PET 2001-N. . The 2001 had a Cassette recorder and a chicklet style keyboard with a rather short space-bar. Not very useful in an office environment. The PET 2001 used a standard gwhite colored monitor. The Kernel ROM was did not support Commodore's new line of disk drives.

Source: WikiPedia - Commodore PET

The Commodore PET line began in 1977 with the PET 2001, one of the earliest all-in-one personal computers. It featured a MOS Technology 6502 CPU running at 1 MHz, with 4–8 KB of RAM (expandable to 32 KB in later revisions), and a built-in monochrome monitor and cassette drive. The machine used a character-based display with a 40×25 screen buffer mapped directly into memory, and graphics were limited to PETSCII, a modified ASCII set with block-drawing symbols. Its BASIC interpreter, written by Microsoft, was in ROM, ensuring instant-on usability. The PET 2001 established the architecture that would define the series: a 6502 processor, memory-mapped I/O, BASIC in ROM, and integrated display and keyboard.

The PET branding was used primarily in North America and early European Sales. Later the CBM (Commodore Business Machines) branding was applied more heavily in Europe, as PET had trademark conflicts with the Dutch Philips company, which used PET for a line of audio products.

Later models, such as the 3000 and 4000 series, refined this architecture. They introduced larger memory configurations, replacing the original "chiclet" keyboard with full-travel designs, and replacing the built-in cassette with external storage options. The 4000 series added an 80-column text mode in some variants, using additional video RAM and CRT controllers. While the core 6502 CPU and BASIC ROM remained consistent, the bus architecture was gradually expanded to support more RAM (up to 96 KB, though not all was directly addressable by BASIC). These systems also introduced IEEE-488 (GPIB) ports for disk drives and printers, a notable departure from the hobbyist S-100 or RS-232 setups common in other machines of the era.

The final iteration, the 8000 series (sometimes called “Big PETs”), pushed the PET architecture to its practical limits. With up to 96 KB of RAM and a full 80×25 display standard, these machines were targeted toward business and scientific use rather than hobbyists. They retained the 6502 core and Microsoft BASIC ROMs but added more advanced video circuitry and professional keyboard layouts. Despite their improvements, the PET line was eventually eclipsed by the Commodore 64 and the CBM-II series, which offered richer graphics and sound. Still, the PET series represents a coherent lineage: a consistent 6502-based core with incremental refinements in display, memory, and I/O, bridging the gap between early hobbyist machines and professional microcomputers.

Commodore BASIC was a dialect of Microsoft BASIC, licensed by Commodore in 1977 for use in the PET 2001. It ran from ROM, freeing all RAM for user programs, and provided an immediate programming environment upon power-up. The interpreter was built on the 6502 processor, with tightly coded routines for tokenization, line storage, and execution. This structure allowed BASIC statements to be entered interactively, stored in memory as linked line records, and executed sequentially or via branching constructs. Commodore kept this design across its entire 8-bit product line, from the PET and VIC-20 to the Commodore 64 and beyond, creating a sense of continuity between machines.

Historically, Commodore BASIC differed from many other implementations in its limited feature set relative to machine capabilities. For example, the original PET BASIC lacked dedicated graphics or sound commands, requiring programmers to manipulate memory directly through PEEK and POKE. Even later versions, such as BASIC V2 on the C64, still omitted high-level graphics and sound statements, in contrast with Atari BASIC or BBC BASIC, which provided structured access to system hardware. Only with extended versions such as BASIC 3.5, 4.0, and 7.0 did Commodore add disk commands, string handling improvements, and more advanced features.

When compared to contemporaries, Commodore BASIC was often criticized as being underpowered, but its simplicity made it approachable. BBC BASIC, for example, incorporated structured programming constructs and inline assembler, whereas Commodore’s offering retained the line-numbered, unstructured style of early Microsoft BASIC. Atari BASIC, developed separately, emphasized graphics and sound integration through dedicated keywords. Commodore’s approach forced users to learn the underlying memory map, making them more technically literate about hardware but also raising the entry barrier for certain types of applications.

Despite its limitations, Commodore BASIC achieved massive popularity due to sheer reach. Millions of units shipped with it as the only built-in interface, ensuring every user interacted with it directly. Its ubiquity in schools, homes, and small businesses made it a de facto teaching language for a generation. Moreover, the reliance on PEEK and POKE, while cumbersome, fostered a culture of type-in listings and hardware exploration. This combination of accessibility, wide distribution, and necessity cemented Commodore BASIC’s role as one of the most influential programming environments of the late 1970s and 1980s.

• BASIC 1.0 (PET 2001, 1977)

  Computers: Commodore PET 2001
  Features: Essentially a stock Microsoft BASIC interpreter running in ROM, with support for integer and floating-point arithmetic, strings, arrays, and file operations for tape storage.
  Limitations: No disk commands, no advanced error trapping, and no machine-specific extensions. Designed as a minimal environment to ship the PET quickly.

• BASIC 2.0 (VIC-20, C64, C-MAX, 1981–1982)

  Computers: VIC-20, Commodore 64, Commodore MAX Machine
  Features: Nearly identical to BASIC 1.0 with minor bug fixes, provided the same core Microsoft BASIC functionality.
  Limitations: No disk drive commands, no dedicated graphics or sound statements. Hardware had to be accessed through POKE and PEEK.

• BASIC 3.5 (Commodore 16, C116, Plus/4, 1984)

  Computers: Commodore 16, Commodore 116, Commodore Plus/4
  Features: Added graphics and sound commands (GRAPHIC, CIRCLE, PAINT, SOUND, PLAY), integrated disk commands (DLOAD, DSAVE, DIRECTORY), plus utilities like RENUM and TRON/TROFF.
  Limitations: Still line-number oriented and lacked the structured programming richness of competitors like BBC BASIC.

• BASIC 4.0 (PET/CBM Business Series, 1979+)

  Computers: PET/CBM 4000 and 8000 series
  Features: Expanded disk support with DLOAD, DSAVE, DIRECTORY, COPY, and SCRATCH. Improved error handling suitable for commercial environments.
  Limitations: Focused on business and disk operations, no graphics or sound capabilities because target hardware lacked them.

• BASIC 7.0 (C-128, 1985)

  Computers: Commodore 128
  Features: Added high-level graphics (DRAW, CIRCLE, PAINT) and sound (PLAY, SOUND) commands, advanced disk operations, structured programming constructs like WHILE...WEND, RENUM, and support for memory banking and multi-mode operation.
  Limitations: Despite enhancements, still less sophisticated in structured constructs compared to BBC BASIC or contemporary Pascal-like systems.

• BASIC 10.0 (C-65 prototype, 1990–1991)

  Computers: Commodore 65 (prototype, unreleased commercially)
  Features: Extended support for high-resolution graphics and larger color palettes through VIC-III, up to 8 MB memory addressing, advanced string handling, and structured commands.
  Limitations: Never commercially released, so its practical impact was negligible despite advanced features.

The 6502 is an 8-bit MicroProcessor designed by MOS Technology. The team was led by Chuck Peddle and had also worked on the Motorola 6800. The 6502 is a simplified, but faster and cheaper design than the 6800.

The 6502 was introduced in 1975 and was the cheapest microprocessor on the market. Together with the Zilog Z80, the 6502 helped start the home computer revolution of the 1980s. The 6502 was used in a wide range of devices: the Atari 2600, the 8-bit Atari home computers, the Apple II, the Nintendo Entertainment System, the Commodore 64, the BBC Micro and many others. All used the 6502 or a variation of it.

The 6502 is a 1MHz design, while the 6502A is designed for 2MHz. The 6502A is 100% compatible with the original 6502.

Commodore soon bought MOS Technology, but conitnued to sell the microprocessor to competitors and licensed the design to other manufacturers.
