Sharp X1 family

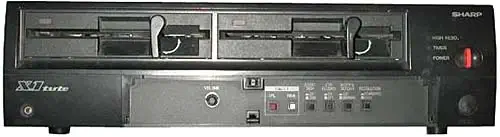

Sharp X1 Turbo
sha_x1t

Introduction

The Sharp X1 Turbo was an improvement on the X1. Graphics capabilities had been upgraded to include a 640x400 mode, and it came with dual 5.25" disk drives for storage. THe machine had 64K RAM, came with Hu-BASIC built in ROM and had a 3-voice + white noise Programmable Sound Generator (The General Instrument AY-3-8910, the Yamaha YM2149, or the Yamaha YM2151 in later revisions).

CPU - The Zilog Z80

The Z80 quickly became popular in the personal computer market, with many early personal computers, such as the TRS-80 and Sinclair ZX80, using the Z80 as their central processing unit (CPU). It was also widely used in home computers, such as the MSX range, SORD, and the Amstrad CPC, as well as in many arcade games. Additionally, it was also used in other applications such as industrial control systems, and embedded systems. The Z80 was widely used until the mid-1980s, when it was gradually replaced by newer microprocessors such as the Intel 80286 and the Motorola 68000.

The Z80 microprocessor was developed by Zilog, a company founded by Federico Faggin in 1974. The Z80 was released in July 1976, as a successor to the Intel 8080. It was designed to be fully compatible with the 8080, but also included new features such as an improved instruction set, more powerful interrupts, and a more sophisticated memory management system.

Originally the Z80 was intended for use in embedded systems, just as the 8080 CPU. But the combination of compatibility, superior performance to other CPUs of the era, and the affordability led to a widespread use in arcade video game systems, and later in home computers such as the Osborne 1, TRS-80, ColecoVision, ZX Spectrum, MSX, Sega's Master System and many more. The Z-80 ran the original Pac-Man arcade cabinet. The Z-80 was used even in the Game Gear (1990s), and the TI-81 and succeeding graphic calculators.

The Z-80 remained in production until June of 2024, 48 years after its original release. Zilog replaced the processor with its successor the eZ80, an 8-bit microprocessor that features expanded memory addressing up to 16 megabytes, and running up to 50MHz, comparable to a Z80 clocked at 150MHz.

Technical Details
Released 1984
Country Japan
Brand Sharp
Type Sharp X1 family
Name Sharp X1 Turbo
CPU Class Z80
CPU Zilog Z80 @3.58MHz
Memory RAM: 64kB
VRAM: 4kB
Sound Chip Yamaha YM2149 Software Controlled Sound Generator (SGG)
Sound 3 FM Channels
Display Chip none
Display 320x200, 620x400
8 colors
Best Color 8 colors
Graphics 640x200 in 8 colors
Sprites none
System OS Hu-BASIC, CP/M
Storage Dual 5.25" Disk Drives
