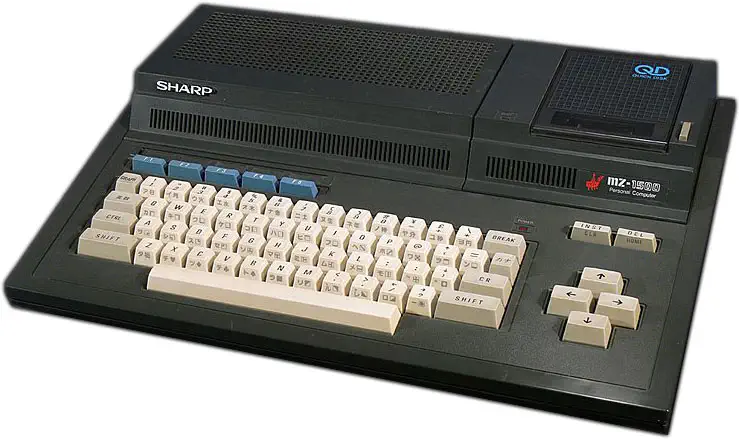

The Sharp MZ-1500

The Sharp MZ-1500 is an upgrade from the MZ-700. Where the MZ-700 had no graphics capabilities, the MZ-1500 has graphics using a Programmable Character Generator. It basically means that the screen treats each 8x8 character as programmable on the screen thus creating a graphics screen.

Sound capabilities are far superior to the MZ-700. The MZ-1500 has two SN76489 sound generators giving it a six voice stereo sound capability.

Graphics on the MZ-1500

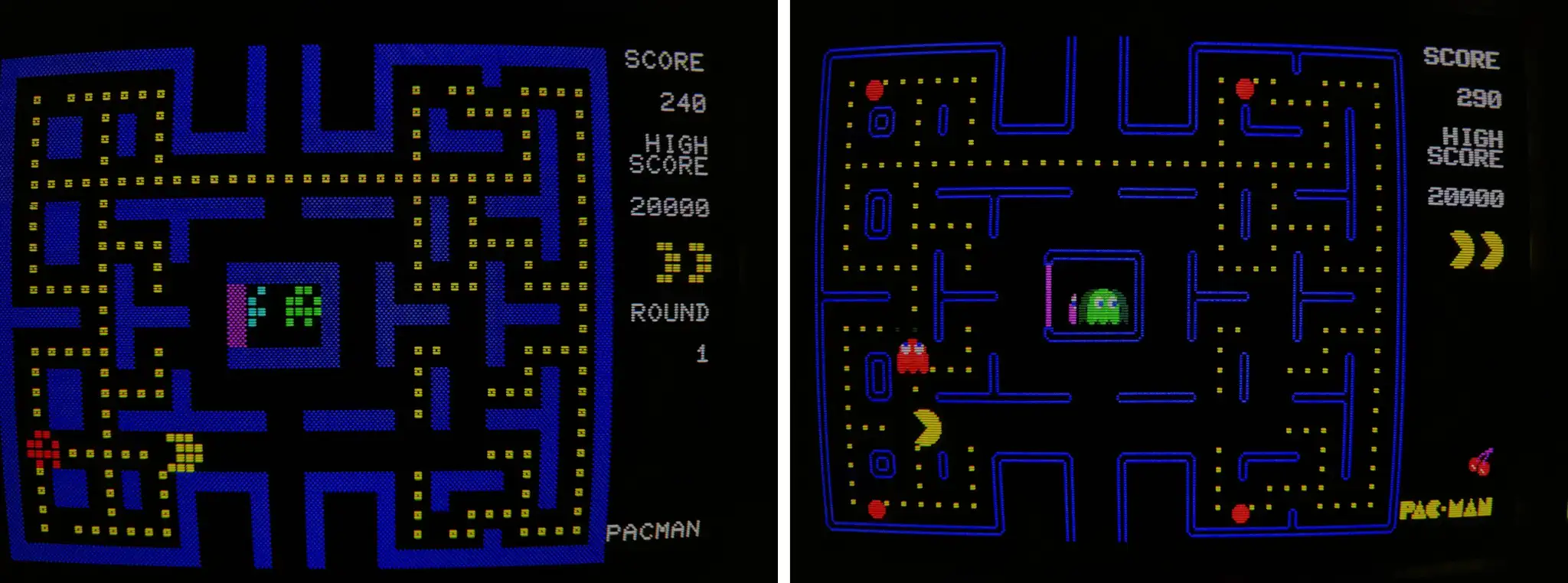

Comparison of the graphic capability of the MZ-700 vs the MZ-1500. On the left is PacMan for the MZ-700 and on the right is the same game for the MZ-1500

Zilog Z80 CPU Family

The Z80 quickly became popular in the personal computer market, with many early personal computers, such as the TRS-80 and Sinclair ZX80, using the Z80 as their central processing unit (CPU). It was also widely used in home computers, such as the MSX range, SORD, and the Amstrad CPC, as well as in many arcade games. Additionally, it was also used in other applications such as industrial control systems, and embedded systems. The Z80 was widely used until the mid-1980s, when it was gradually replaced by newer microprocessors such as the Intel 80286 and the Motorola 68000.

The Z80 microprocessor was developed by Zilog, a company founded by Federico Faggin in 1974. The Z80 was released in July 1976, as a successor to the Intel 8080. It was designed to be fully compatible with the 8080, but also included new features such as an improved instruction set, more powerful interrupts, and a more sophisticated memory management system.

The Z80 quickly became popular in the personal computer market, with many early personal computers, such as the TRS-80 and Sinclair ZX80, using the Z80 as their central processing unit (CPU). It was also widely used in home computers, such as the MSX range, SORD, and the Amstrad CPC, as well as in many arcade games. Additionally, it was also used in other applications such as industrial control systems, and embedded systems. The Z80 was widely used until the mid-1980s, when it was gradually replaced by newer microprocessors such as the Intel 80286 and the Motorola 68000. The design was licensed to Synertek and Mostek as well as the European SGS.

The Z80s instruction set is binary compatible with the Intel 8080, so that 8080 code such as the CP/M Operating System and Intel's PL/M compiler for the 8080 can run unmodified on the Z80. The Z80 had many enhancements over the 8080 such as 16-bit data movement instructions, block copy and block I/O instructions, single bit addressing of all registers, IX/IY offset registers, better interrupt system and a complete duplicate register file for context switching during an interrupt.

Source: WikiPedia
Technical Details
Released 1984 Brand Sharp Type Sharp 700+ Series Name Sharp MZ 1500 CPU Class Z80 CPU Zilog Z80A @3.58MHz Memory RAM: 64kB
VRAM: 24kB
Sound Chip 2x Texas Instruments SN76489 Sound 2x 3 channels(stereo) Display Chip PCG - Programmable Character Generator Display 320x200 Programmable Character Generated graphics 8 colors. Best Color 8 colors Best Graphics 320x200 in 8 colors Sprites none System OS Monitor System Storage Built in 128KByte Quick Disk Drive
